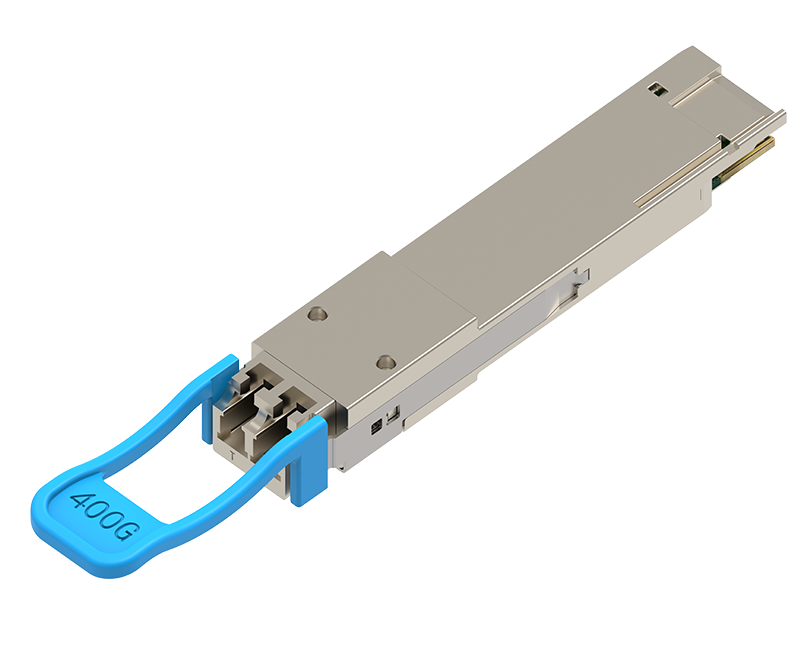

Fortinet 400GE QSFP-DD LR4

Name: Fortinet 400GE QSFP-DD LR4
Brand: Movantech Systems Pvt Ltd
Price: 289543.68 INR
Availability: InStock

Price 289543.68 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fortinet 400GE QSFP-DD LR4 Specification

Processing
Precision Electronic Assembly

Weight
<70g

Design
Compact, Plug-and-Play

Part
QSFP-DD-400GE-LR4

Application
Data Centers, Enterprise Networking, Cloud Providers, Telecom Infrastructure

Tolerance
Industry Standard QSFP-DD

IP Rating
IP20

Humidity
5%~85% Non-condensing

Usage
High-speed data connectivity

Technique
Laser Wavelength Transmission

Input Voltage
3.3V

Product Type
Optical Transceiver Module

Equipment Type
QSFP-DD Optical Transceiver

Material
Metal, High-Grade Components

Process
SMT and advanced module integration

Service Period
Lifecycle up to 5 years

Color
Metallic (Silver) with Blue Pull-tab

Output Voltage
Standard Optical Power Output

Installation Guideline
Hot-swappable; Insert into compatible QSFP-DD port

Finish
Brushed Metal

Standard
IEEE 802.3bs, MSA QSFP-DD compliant

Thickness
Standard as per QSFP-DD Specification

Surface Treatment
Electroplated, Polished

Temperature
Operating: 0C to 70C (32F to 158F)

Brand Name
Fortinet

Dimension (L*W*H)
Approx. 129 mm x 19 mm x 13 mm

Mounting Type
Pluggable/Hot-swappable

Size
QSFP-DD Form Factor

Supply Voltage
3.3V

Model No
400GE QSFP-DD LR4

Firmware Upgradable
Yes

Relative Humidity (Storage)
0% - 85%

Maximum Transmission Distance
10km (with single-mode fiber)

Storage Temperature
-40C to 85C (-40F to 185F)

Hot Pluggable
Yes

Power Consumption
12W

Compatibility
QSFP-DD MSA compliant switches and routers

Wavelength
1264.5nm to 1337.5nm

Transmission Data Rate
400Gbps

Compliance
RoHS, CE, FCC

Optical Interface
LC Duplex

Connector Type
Dual LC Duplex

MTBF
>1,000,000 hours

Protocol Support
Ethernet, OTU4

Digital Diagnostics
Supported (DDM/DOM)

Fortinet 400GE QSFP-DD LR4 About

Fortinet FN-TRAN-QSFPDD-LR4 400G QSFP-DD LR4 Optical Transceiver

The Fortinet FN-TRAN-QSFPDD-LR4 is a high-performance 400G QSFP-DD LR4 optical transceiver designed for high-speed data center and enterprise networking applications. It provides reliable 400Gbps network connectivity over single-mode fiber and supports long-distance transmission of up to 10 km.

This optical transceiver is suitable for data centers, enterprise networks, cloud infrastructure, high-performance computing environments, and other applications requiring high-bandwidth and long-distance optical connectivity.

Key Features:

Brand: Fortinet
Model / Part Number: FN-TRAN-QSFPDD-LR4
Product Type: 400G QSFP-DD LR4 Optical Transceiver
Data Rate: 400 Gbps
Form Factor: QSFP-DD
Standard: 400GBASE-LR4
Fiber Type: Single-Mode Fiber (SMF)
Transmission Distance: Up to 10 km
Connector: Duplex LC
Application: Data Centers, Enterprise Networks, Cloud & High-Speed Networking
Installation: Pluggable module for compatible QSFP-DD ports
Usage: High-speed and long-distance data transmission
Product Category: Network Hardware / Fiber Optic Transceiver

The FN-TRAN-QSFPDD-LR4 offers high-speed, reliable and efficient optical connectivity for modern network infrastructure and high-bandwidth data center environments.

Optimal Performance for Demanding Networking Environments

Designed for high-speed connectivity, this 400GE QSFP-DD LR4 transceiver delivers 400Gbps data rates across distances up to 10km, ensuring consistent performance in data centers and telecom infrastructure. Its advanced optics enhance long-range communications, serving the needs of enterprise and cloud networking.

Easy Integration and Reliable Operation

With plug-and-play installation and hot-swappable capability, deployment becomes seamless and downtime is minimized. The transceiver's QSFP-DD MSA compliance assures broad compatibility, while its robust metal construction and high-grade components contribute to dependable, long-term use.

Comprehensive Diagnostics and Future-ready Design

Supporting digital diagnostics (DDM/DOM) and firmware upgrades, this transceiver enables real-time monitoring and easy maintenance. Its compliance with the latest standards ensures interoperability and adaptability as network demands evolve.

FAQ's of Fortinet 400GE QSFP-DD LR4:

Q: How do I install the Fortinet 400GE QSFP-DD LR4 transceiver into my network equipment?

A: Installation is straightforward: align the transceiver with the compatible QSFP-DD port on your switch or router and insert it securely. The device's hot-swappable design allows you to perform installation or replacements without needing to power down your equipment.

Q: What advantages does the 400GE QSFP-DD LR4 offer for data centers and enterprise networks?

A: This transceiver delivers ultra-high-speed data transmission up to 400Gbps over 10km, making it ideal for bandwidth-intensive environments like data centers and enterprise networks. Its low power usage, robust diagnostics, and long mean time between failure significantly enhance reliability and performance.

Q: When is it necessary to upgrade the firmware of this optical transceiver?

A: Firmware updates should be performed when Fortinet releases new versions to introduce enhancements or address identified issues. Upgrading firmware ensures your transceiver maintains optimal compatibility, security, and feature support.

Q: Where is the Fortinet 400GE QSFP-DD LR4 typically used?

A: The module is widely used in data centers, cloud provider infrastructures, enterprise networking, and large-scale telecom facilities, especially where high-capacity, long-distance optical connections are essential.

Q: What diagnostic functions does the digital diagnostics monitoring (DDM/DOM) feature support?

A: The built-in DDM/DOM functionality enables real-time monitoring of key parameters such as temperature, optical power, voltage, and laser bias, which supports proactive management and troubleshooting of network health.

Q: How does the compact and robust design benefit long-term use?

A: With its brushed metal finish and precise electronic assembly, the transceiver offers excellent durability and effective heat dissipation. Its compact QSFP-DD form ensures space efficiency, and high-grade components contribute to an MTBF exceeding one million hours.
