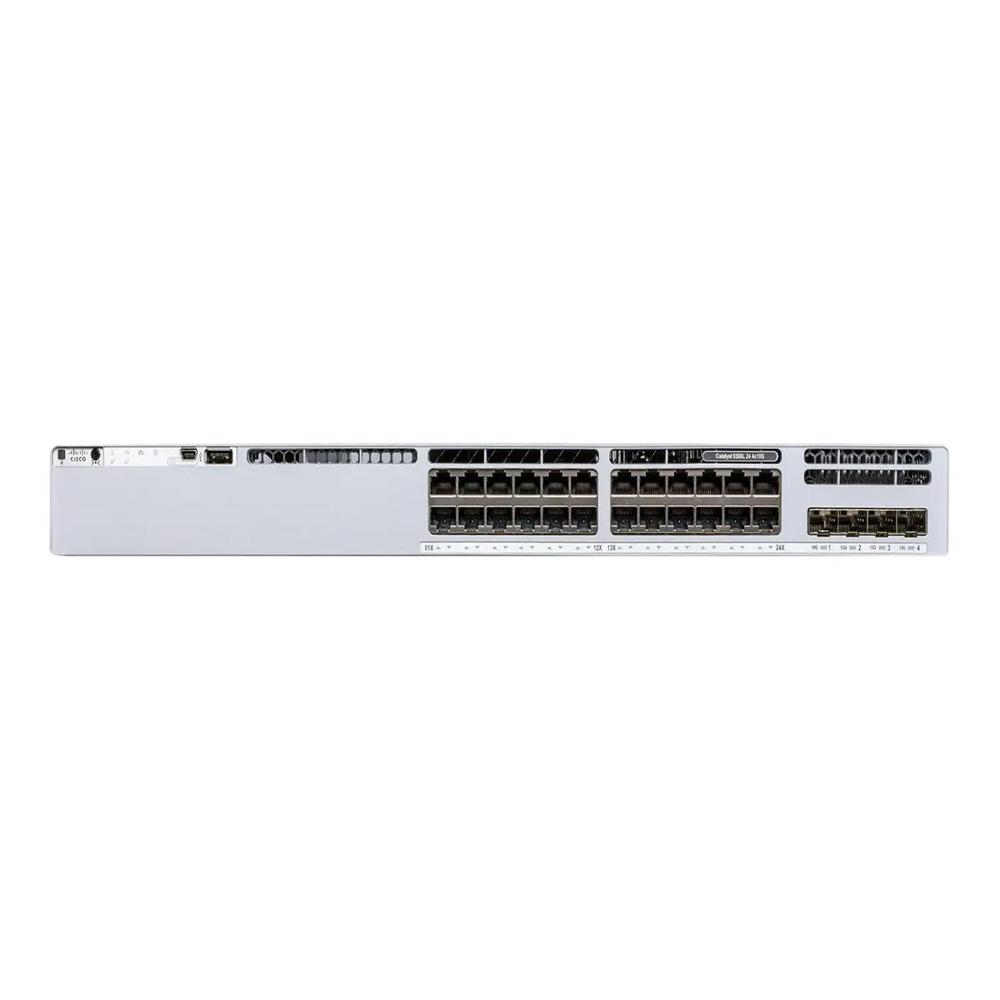

Catalyst C9300L-24P-4X-A Managed Network Switch

Send Inquiry

Request To Call Back

Catalyst C9300L-24P-4X-A Managed Network Switch

Name: Catalyst C9300L-24P-4X-A Managed Network Switch
Brand: Movantech Systems Pvt Ltd
Price: 555072.0 INR
Availability: InStock

Price 555072.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Catalyst C9300L-24P-4X-A Managed Network Switch Specification

Design
Front-to-Back Airflow

Humidity
Operating: 5% to 95% (non-condensing)

Standard
IEEE 802.3af/at, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3z

Brand Name
Cisco

Equipment Type
PoE+ Switch

Finish
Powder coated

Supply Voltage
100-240V AC

Material
Metal Chassis

Output Voltage
PoE+ up to 30W per port

Frequency
50/60 Hz

Usage
Enterprise Networking

Dimension (L*W*H)
44.5 x 35.0 x 4.4 cm (17.5 x 13.8 x 1.73 inch)

Technique
High-speed Packet Processing

Color
Silver/Gray

Service Period
As per Cisco support contract

Thickness
Standard Rackmount thickness

Processing
Layer 2 and Layer 3 switching

Weight
Approximately 5.57 kg (12.28 lbs)

Temperature
Operating: 0C to 45C (32F to 113F)

Size
1U Rackmount

Mounting Type
Rackmount

RAM
8 GB DRAM

Process
Data Packet Switching

Product Type
Managed Network Switch

IP Rating
Not rated for ingress (intended for data center/office environment)

Input Voltage
100-240V AC

Installation Guideline
Standard Rack Mount Installation

Part
Network Switch

Surface Treatment
Corrosion-resistant finish

CPU Support
Multi-core CPU (exact specification not published by Cisco)

Application
LAN/WAN Switch

Model No
C9300L-24P-4X-A

Stacking Support
Cisco StackPower, Cisco StackWise-320

Redundant Power Supplies
Yes (optional)

LED Indicators
Port Status, System, Link/Activity, Speed

VLAN Support
Up to 4094 VLANs

Routing Capability
Layer 3 Routing (static routing, OSPF, EIGRP, RIP, policy-based routing)

Forwarding Rate
95.23 Mpps

Fan Redundancy
Fixed fan tray (non-redundant in L model)

Switching Capacity
128 Gbps

Acoustic Noise
Maximum: 46.3 dB(A)

Uplink Ports
4 x 10G SFP+

QoS Features
Advanced Quality of Service with per-port queuing and policing

Security Features
DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, AAA, TACACS+/RADIUS

PoE Power Budget
370W

Software Features
Cisco DNA Center, Cisco IOS XE, support for upgrade automation

Noise Level
Typically 46.3 dB (A) at 25C

Total Ethernet Ports
24 x 10/100/1000 PoE+ Ethernet Ports

Management Interface
Web GUI, CLI, SNMP, SSH, Telnet, USB

Energy Efficiency
Energy Efficient Ethernet (EEE), compliant with IEEE 802.3az

Access Control
802.1X, MAC Filtering, Port Security

Environmental Compliance
RoHS, WEEE, REACH compliant

About Catalyst C9300L-24P-4X-A Managed Network Switch

The Cisco Catalyst C9300L-24P-4X-A Managed Network Switch offers an imposing blend of advanced features and meritorious performance, establishing itself as an eminent solution for enterprise networking. With 24 PoE+ Ethernet ports and 4 10G SFP+ uplinks, it ensures robust connectivity. The switch's reduced price and instant checkout make it a popular choice for organizations seeking value-driven, scalable solutions. Reliable Layer 3 routing, enhanced security, and energy efficiency assure optimal network operations. Constructed with a durable metal chassis, it is designed for seamless rackmount deployment.

Application, Usage Type & Installation Method

The Catalyst C9300L-24P-4X-A Managed Network Switch is engineered for enterprise LAN/WAN applications, supporting both Layer 2 and Layer 3 switching processes. Its versatility makes it suitable for data centers, office environments, and organizational IT infrastructures. Installation follows the standard rackmount method, ensuring compatibility with most enterprise cabinets. The switch is intended for professional usage where high-performance data packet processing, network management, and secure access control are essential, serving as a cornerstone for robust and scalable network architectures.

Sample Policy, Supply Ability & Payment Terms

Our sample policy targets minimal initial expenditure, allowing potential users to evaluate the product before full deployment. Supply ability is consistent and reliable to meet bulk or recurring enterprise demands, with all devices carefully verified for valuation and compliance. Payment terms are flexible to facilitate smooth commercial handover, including options for upfront or scheduled billing in alignment with procurement guidelines. Each transaction fosters long-term partnerships and ensures a seamless transition from evaluation to operational use.

FAQ's of Catalyst C9300L-24P-4X-A Managed Network Switch:

Q: How is the Catalyst C9300L-24P-4X-A Managed Network Switch installed?

A: The switch is designed for standard 1U rackmount installation, ensuring compatibility with most enterprise racks and cabinets.

Q: What are the benefits of using this managed switch in an enterprise environment?

A: The device delivers advanced Layer 3 routing, PoE+ support, robust security features, and scalable management, ensuring efficient, secure, and reliable network operations.

Q: Where is the C9300L-24P-4X-A best applied?

A: It is best suited for enterprise networks, data centers, and large office environments that require high-performance connectivity and advanced management.

Q: What is the process for evaluating a sample before purchase?

A: A sample can be provided with minimal expenditure, allowing thorough assessment of features and compatibility prior to full-scale handover and deployment.

Q: How does the switch support secure network usage?

A: With features like 802.1X access control, MAC filtering, DHCP Snooping, and advanced authentication protocols (AAA, TACACS+/RADIUS), it enhances overall network security.

Q: When should enterprises consider upgrading to this model?

A: Organizations should consider this model when seeking improved performance, energy efficiency, advanced security, and high port-density to accommodate growth.
